Intercom system for home, for easy monitoring of visitors. Use with Home automation system and Smart Locks.



• The Video Door Phone facilitates two way communication. It can connect to up to 2 Outdoor units and 4 Indoor units for single family.
• It can be paired wireless with Yale Smart Door Lock and electro-mechanical Lock- through which lock can be opened from the indoor unit itself.
• Facilitates simultaneous Monitoring and talking with a visitor. Supports Point-to-point intercom and broadcast function

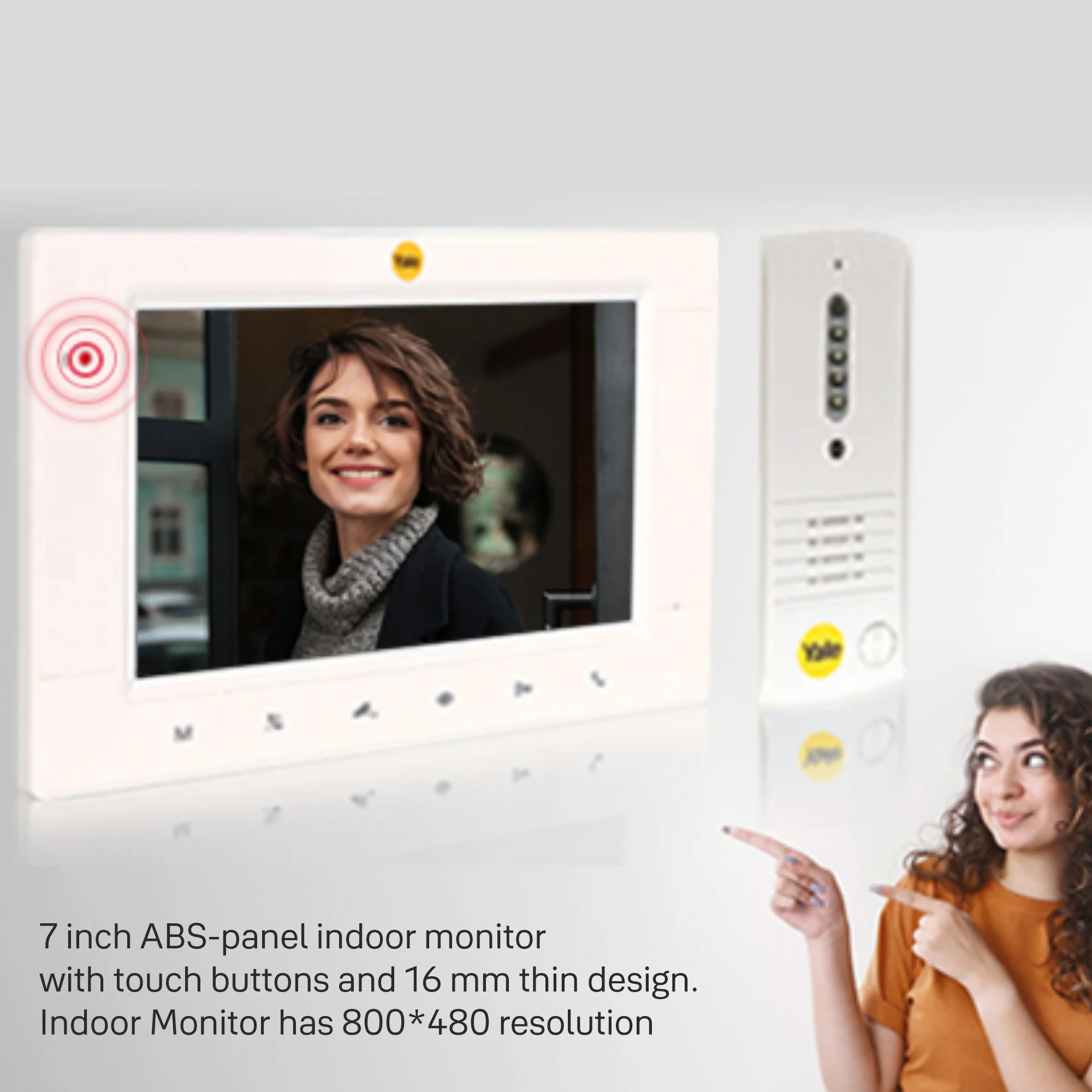

• JB 305 E comes with 7 inch ABS-panel indoor monitor with touch buttons and 16 mm thin design. Indoor Monitor has 800*480 resolution.

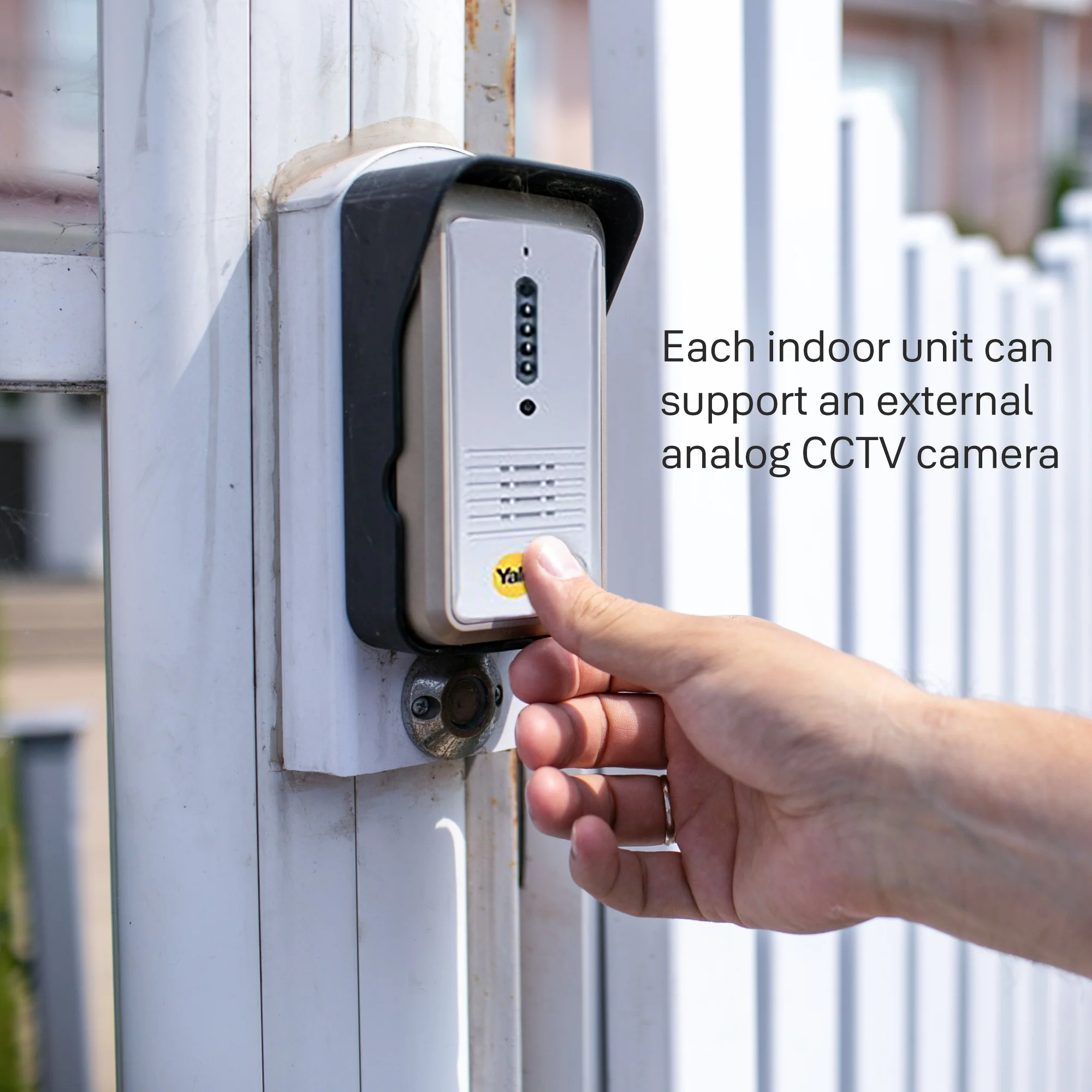

• JB 305 - E comes with slim design outdoor station & cast-aluminum outer panel. Each indoor unit can support an external analog CCTV camera.
• JB 305- E supports intercom, remote unlock and monitor the door.
• Input call be transferred from one indoor monitor to another.
• Adjustable talk volume and ringing volume.

Outdoor Unit
Panel	Aluminum, anti-vandal
Camera	1/4" color CMOS camera, Pin-hole
Night vision	White LEDs
Installation Type	Surface Mount
IP Rating	IP 54
Operating Temperature	-25～70℃
Weight ( Kg)	0.4
Dimensions( mm)	54.5*140.5*40
Indoor Unit
Panel	PMMA, white color
Display	7" TFT-LCD, 800*480 Pixels
Night vision	White LEDs
Installation Type	Surface Mount
Operating Temperature	-25～55℃
Weight ( Kg)	0.5
Dimensions( mm)	210*130*16
